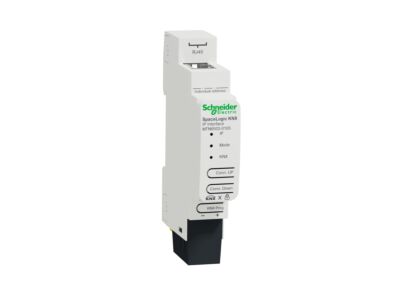

SCHNEIDER MTN6502-0105 Spacelogic KNX/IP rozhraní

Spacelogic KNX IP Interface DIN Rail. The Spacelogic KNX IP Interface is an interface between IP and KNX. You can access the KNX Bus from every point of your LAN. The Spacelogic KNX IP Interface can be used as a programming interface for ETS 5 Software and allows to access the KNX bus over the Internet via a VPN. The device supports KNX Security which can be enabled in ETS. With its interface functionality (tunneling) KNX security prevents unauthorized access. The device supports up to 8 tunneling channels. For each tunneling channel, a separate individual address must be configured. With 2 integrated push-buttons to select the tunneling channel and 3 status LEDs. The Interface is powered by the KNX bus. An additional power supply is not needed. For installation on DIN rails TH35 according to EN 60715. The bus is connected using a bus connecting terminal. The LAN network is connected via the RJ45 socket. Device width - 1 module = approx. 18 mm. Note - This application requires ETS 5 or higher. Contents - With bus connecting terminal and cable cover.
