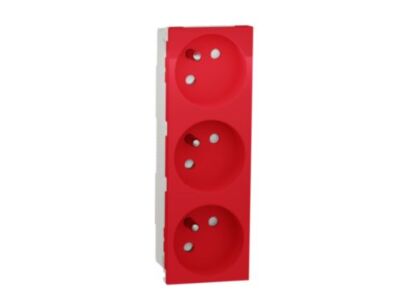

SCHNEIDER Unica - Zásuvka trojitá 45° 250V/16A 3x2P+E, clonky, bezšroubová, Červená

SCHNEIDER Unica - Zásuvka trojitá 45° 250V/16A 3x2P+E, clonky, bezšroubová, Červená

Značka
SCHNEIDER ELECTRIC
Kód ELFETEX
11.484.215
EAN
3606489454579
Kód výrobce
NU307903
Obrázek je pouze ilustrativní.

Informace o produktu

Ke stažení

Informace o produktu

Schneider Electric New Unica socket-outlet NU307903 is a mechanism in color red with 3 socket outlets. The outlet pole configuration of this socket-outlet is 2P + E with shutters, ensuring safety protection. This device respects the French standard. The dielectric strength of this socket-outlet is 2000V. Its rated current is 16A. The fixing mode of this device is clip-in. It is 45 mm in width, It is 135 mm in height, 39.4 mm in depth with an embedding depth of 30 mm. Its matching mounting box can be recessed into the surface of the wall with flush type. The surface finish is glossy, delivering an elegant and high-end feeling to a room. The IP rating of this device is IP21D which is very high. Besides, it reaches IK04 protection level, which can help protect against impact. This socket-outlet has screwless terminals connection terminals. The socket-outlet is made of PC, making it resistant and durable. This socket-outlet is NF certified. Being environmentally friendly, this socket-outlet is a green premium product. This socket-outlet is mercury free New Unica includes a suite of new designs, colors and materials. Users benefit from beautiful design that match their style and innovative products. New Unica is designed with clever features to be flexible, easy to understand and quick to install providing solutions for all customers requirements.
  • Značka SCHNEIDER ELECTRIC
Zásuvky
  • Jmenovitý proud 16 A
  • Jmenovité napětí 250 V
  • Způsob montáže Podomítková montáž
  • Barva Bílá
  • Provedení Ochranný kontakt
  • Bez halogenů Ano
  • Počet jednotek 2
  • Typ připojení Šroubovací svorka
  • Plocha Bez povrchové úpravy
  • Počet fází 1
  • Se zvýšenou ochranou proti dotyku Ano
  • Frekvenční rozsah 50 - 60 Hz
  • Ochranný kontakt Ano
  • Kvalita materiálu Termoplast
  • Speciální napájení Bez zvláštního napájení
  • Materiál Plast
  • Typ upevnění Snap montáž
  • Popis / označování Bez potisku
  • RAL číslo (podobné) 9003
  • Rázová pevnost IK04
  • Provedení povrchu Lesklý
  • Vhodné pro stupeň krytí (IP) IP21
  • Šířka přístroje 45 mm
  • Výška přístroje 90 mm
  • Hloubka přístroje 40.4 mm
  • Množství modulů ( při modulovém provedení) 4
  • Počet aktivních kontaktů ( kruhových ) 4
  • Min.hloubka přístrojové krabice 40 mm
