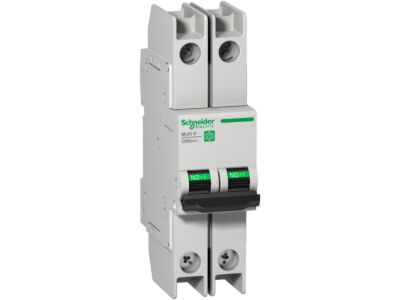

SCHNEIDER Jistič Multi9 C60BPR 2P D 6A 10kA 480Y/2

This Multi 9 C60BPR is a low voltage miniature circuit breaker (MCB). It is a 2P circuit-breaker with 2 protected poles, 6A rated current and D tripping curve. It can be mounted on DIN rail for modular installation. As circuit-breaker, its breaking capacity, according to IEC/EN 60947-2, is 20kA at 230VAC and 10kA at 400VAC. This circuit-breaker protects circuits against short circuit and overload currents according to UL 489. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. It becomes IP40 once in modular enclosure. The tripping or fault indication functions are remotely provided by adding electrical auxiliaries. The green mechanical indication guarantees the physical opening of the contacts to allow downstream maintenance.
