Kód ELFETEX
10.783.803
Kanál HTWDHF-100X75-PC/ABS
Informace o produktu

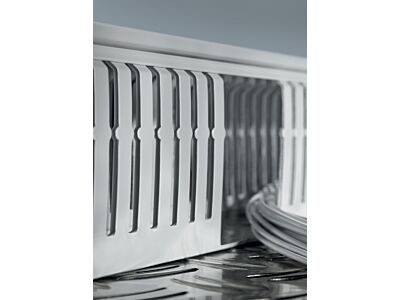

Excellent fire-safety characteristics. Narrow slots suitable for small-diameter wires. Smooth, burr-free edges protect installers from injury and wires from damage. Fingers can be removed with no sharp edges at pre-notched snap-off points. Further pre-notched snap-off point at base of sidewall allow cutting out and removing sections of sidewall with no sharp edges. Duct covers hold securely even in a vertical position and under vibration. Cover is flush with side of duct, allowing for tight, contiguous placement of duct. Base perforation according to DIN EN 50085. HellermannTyton HTWD-HF halogen-free ducts are used wherever there are high demands on personal or material safety, such as public transport, tunnels, lifts and data processing centres. Note: Halogen-free PC+ABS is not resistant to all oils and greases.
- Značka HELLERMANNTYTON
Propojovací kanály pro rozvaděče
- Výška 75 mm
- Šířka 100 mm
- Rozteč štěrbin 7.5 mm
- Šířka štěrbiny 5 mm
- Typ boční stěny Se zářezy
- Délka 2000 mm
- Bez halogenů Ano
- Odolnost proti plazivým proudům Ano
- Efektivní průřez 6063 mm²

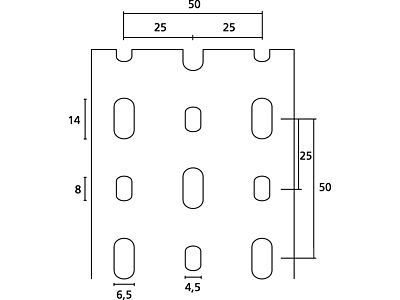

- Typ upevnění Spodní perforace
- s krytem Ano
- Barva Světle šedá
