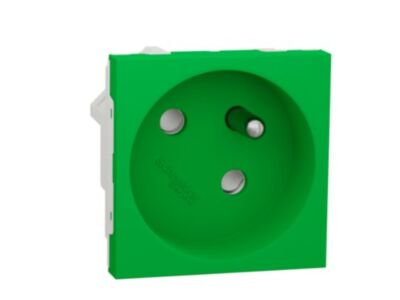

SCHNEIDER Unica - Zásuvka 45° 250V/16A 2P+E, clonky, bezšroubová, Zelená

SCHNEIDER Unica - Zásuvka 45° 250V/16A 2P+E, clonky, bezšroubová, Zelená

Značka
SCHNEIDER ELECTRIC
Kód ELFETEX
11.484.182
EAN
3606489454012
Kód výrobce
NU304906
Obrázek je pouze ilustrativní.

Informace o produktu

Ke stažení

Informace o produktu

Schneider Electric New Unica socket-outlet NU304906 is a mechanism in color green. The outlet pole configuration of this socket-outlet is 2P + E with shutters, ensuring safety protection. And this device is French standard. The dielectric strength level, namely the voltage that the material this socket-outlet uses can withstand for a given wall thickness before dielectric breakdown or electrical discharge, is 2000V. Its rated current is 16A. Clip-in this socket-outlet for the fixation. It is 45 mm in width, It is 45 mm in height, 37.7 mm in depth with an embedding depth of 28.4 mm. Its matching mounting box can be recessed into the surface of the wall with flush type. The surface finish is glossy, delivering an elegant and high-end feeling to a room. The IP rating of this device is IP21D which is very high. Besides, it reaches IK04 protection level, which can help protect against impact. Its connection terminals are screwless terminals. The socket-outlet is made of PC, making it resistant and durable. This socket-outlet is NF certified. Being environmentally friendly, this socket-outlet is a green premium product. This socket-outlet is mercury free New Unica includes a suite of new designs, colors and materials. Users benefit from beautiful design that match their style and innovative products. New Unica is designed with clever features to be flexible, easy to understand and quick to install providing solutions for all customers requirements.
  • Značka SCHNEIDER ELECTRIC
Zásuvky
  • Jmenovitý proud 10 A
  • Jmenovité napětí 250 V
  • Způsob montáže Podomítková montáž
  • Barva Bílá
  • Provedení EURO konektor
  • Bez halogenů Ano
  • Počet jednotek 1
  • Typ připojení Šroubovací svorka
  • Plocha Bez povrchové úpravy
  • Počet fází 1
  • Se zvýšenou ochranou proti dotyku Ano
  • Frekvenční rozsah 50 - 60 Hz
  • Kvalita materiálu Termoplast
  • Speciální napájení Bez zvláštního napájení
  • Materiál Plast
  • Typ upevnění Snap montáž
  • Popis / označování Bez potisku
  • RAL číslo (podobné) 9003
  • Rázová pevnost IK04
  • Provedení povrchu Lesklý
  • Vhodné pro stupeň krytí (IP) IP21
  • Šířka přístroje 22.5 mm
  • Výška přístroje 45 mm
  • Hloubka přístroje 39.3 mm
  • Množství modulů ( při modulovém provedení) 2
  • Počet aktivních kontaktů ( kruhových ) 2
