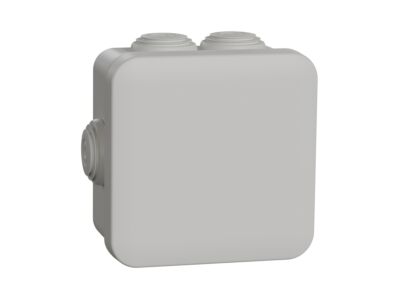

SCHNEIDER Krabice Mureva ENN05004 80x80x45

SCHNEIDER Krabice Mureva ENN05004 80x80x45

Značka
SCHNEIDER ELECTRIC
Kód ELFETEX
10.887.252
EAN
3295150050044
Kód výrobce
ENN05004
Obrázek je pouze ilustrativní.

Informace o produktu

Ke stažení

Informace o produktu

This square surface mounted junction box ENN05004 comes with 7 x 20 mm grommets and clipped-on cover Color grey, dimensions: width 98 mm, height 98 mm, depth 51 mm Including screw collar caps for extra protection of the screw heads Mechanical protection IK07, flame resistance 650 °C Material: body ABS (acrylonitrile butadiene-styrene), cover PP (polypropylene), grommet SBS (styrene butadiene styrene) This surface mounted box is classified IP55 that provides safe installations in rough environments, indoors as well as outdoors, exposed to water and dust like Industry, farms, parking facilities or even a bathroom at home Sometimes you need electricity where it really should be impossible to install it, like in wet or dusty places, or where electricity has not been planned at all You needn’t worry! Since the Mureva boxes from Schneider Electric thoroughly satisfy any high safety requirement that the business might have, all surface mounted installations can be made irrespective of environment or safety needs The boxes are easy to install, they are stable and they are halogen-free. You can equip them according to your specific needs or buy them as complete junction boxes With Mureva electrical supplies at hand, no job will be too demanding!
  • Značka SCHNEIDER ELECTRIC
Krabice pro montáž na stěnu / strop
  • Max. průřez vodiče 20 mm²
  • Osazení Bez
  • Tvar Čtvercový
  • Způsob montáže Nástěnná a stropní montáž
  • Pro trubky o průměru 20 mm
  • Délka 98 mm
  • Šířka 98 mm
  • Hloubka 51 mm
  • Počet přívodů 7
  • Typ průchodky pouzdrem Těsnicí membrána
  • Materiál Plast
  • Plocha Bez povrchové úpravy
  • Barva Šedá
  • Stupeň krytí (IP) IP55
  • Upevnění krytu /víka S naklapnutím
  • Provedení krytu Neosazeno /záslepný kryt
  • Zachování funkce Bez
  • Pro Ex-zónu Bez
  • Pro Ex-zonu prachu Bez
  • Bez halogenů Ano
  • Rozsah provozních teplot -25 - 40 °C
  • Odolnost proti povětrnostním vlivům Ano
  • Druh ochrany ( NEMA) Ostatní, jiné
